Gen 3 Hybrid battery voltage Block sensor connector Pinout

Discussion in 'Gen 3 Prius Technical Discussion' started by johnnychimpo, Jun 26, 2025 at 9:28 PM.

Tags:
  1. johnnychimpo

    johnnychimpo Active Member

    Joined:
    Aug 21, 2007
    512
    111
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three

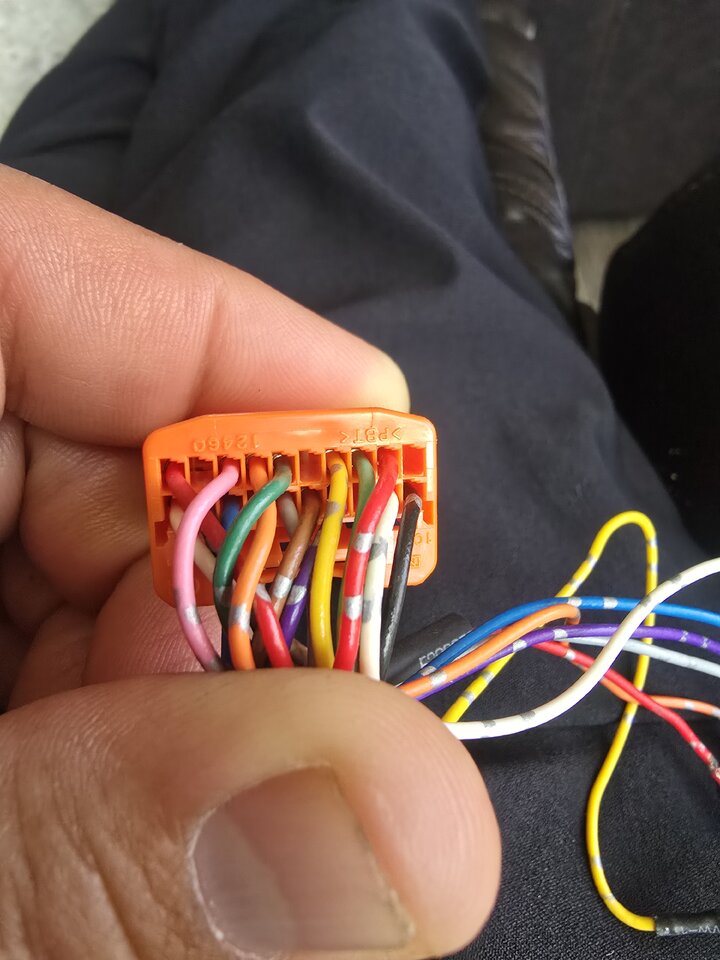

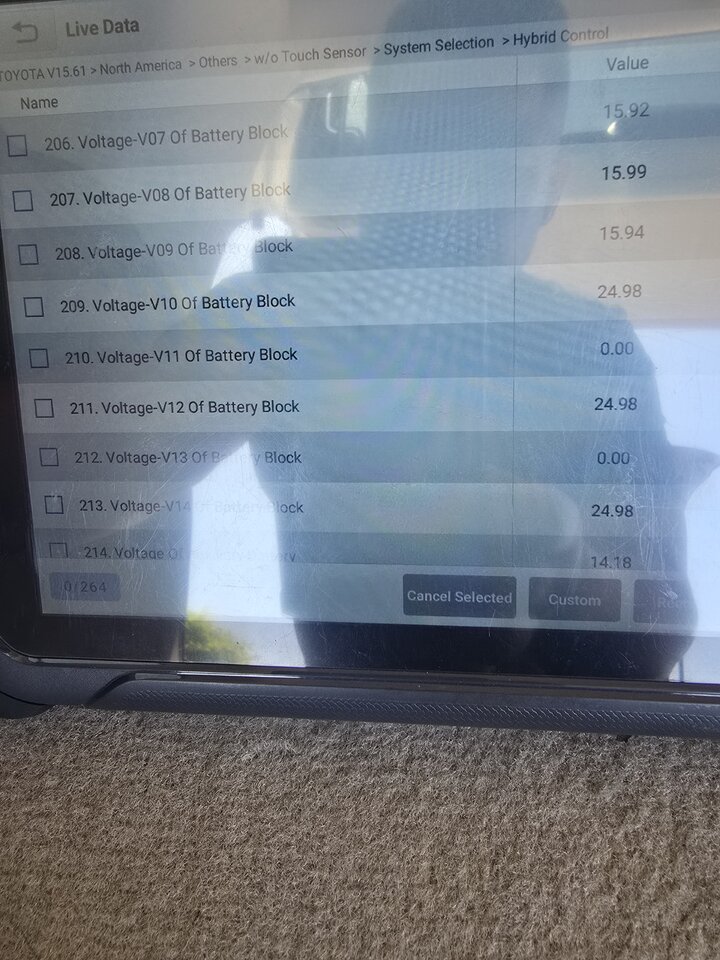

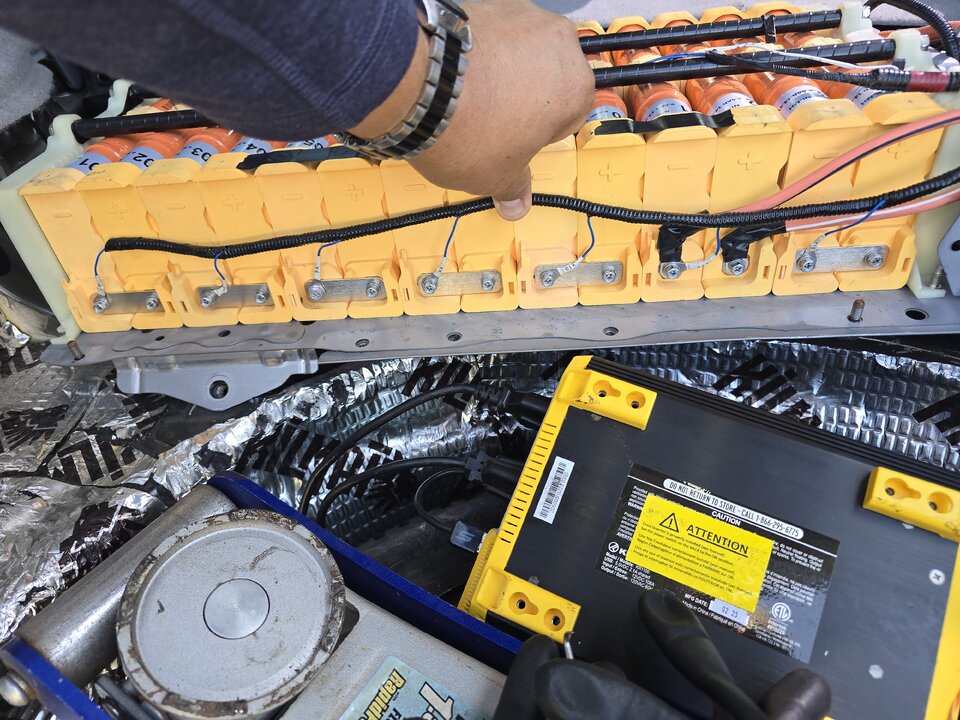

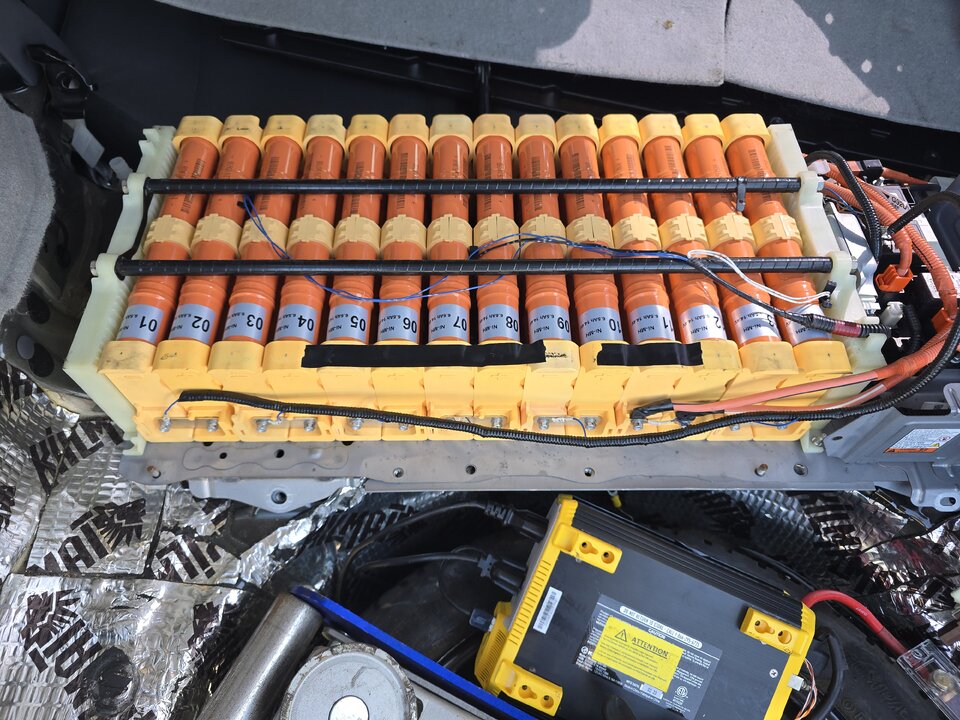

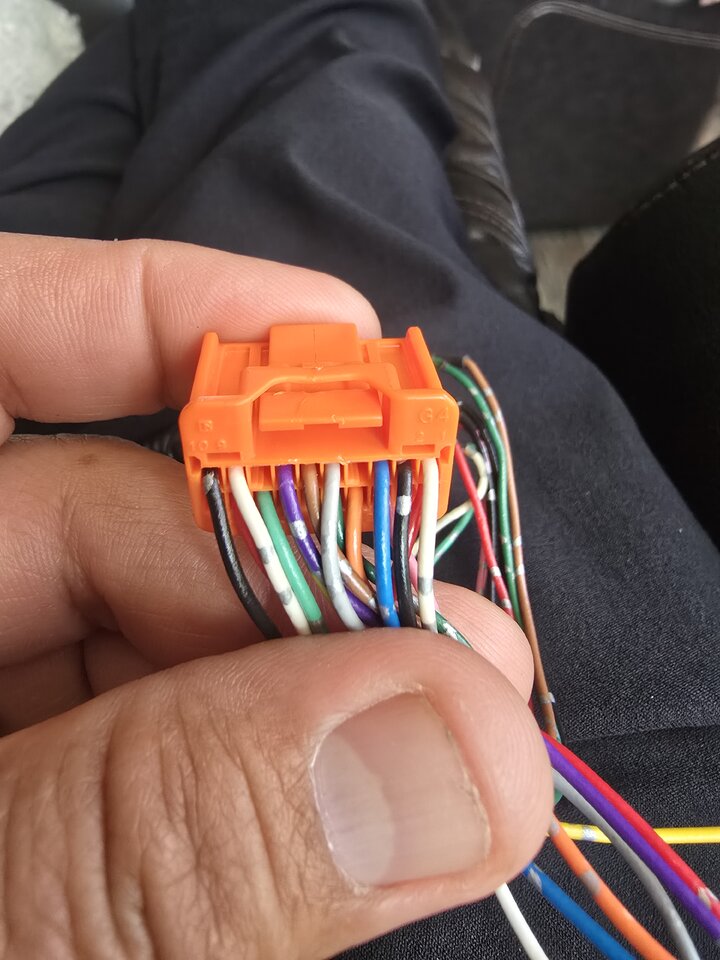

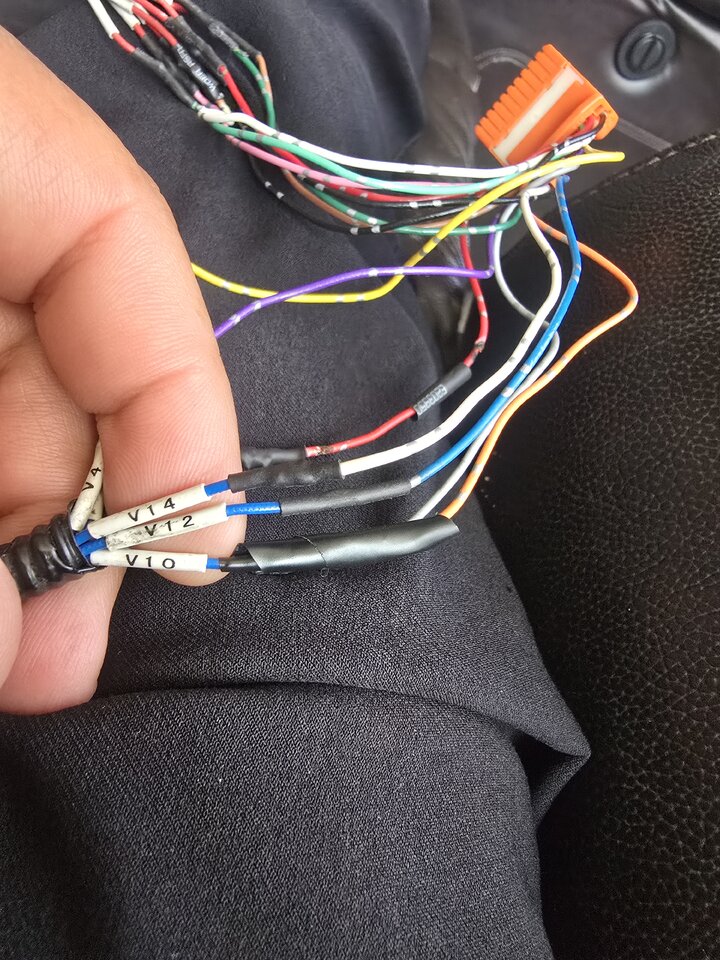

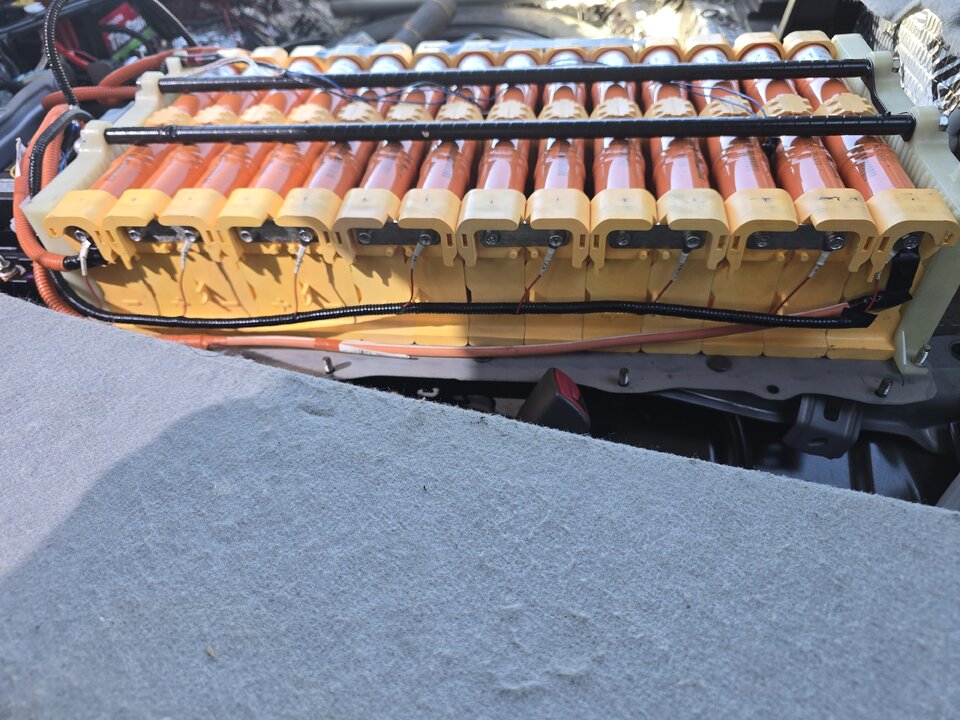

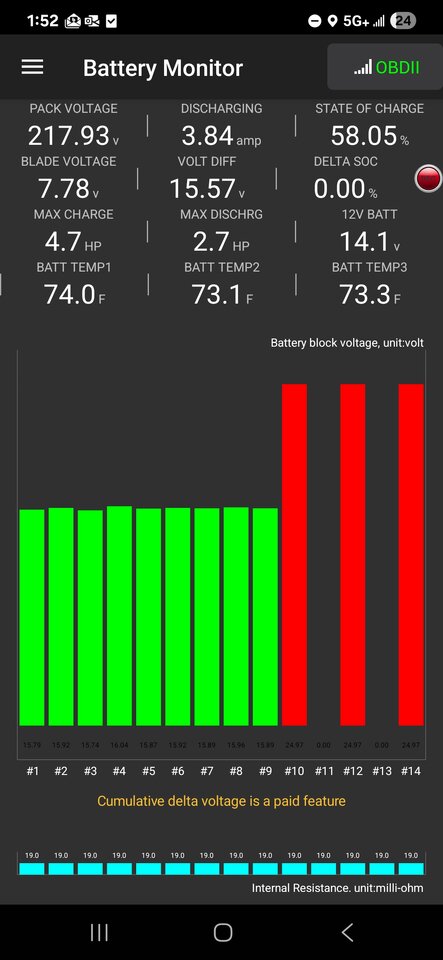

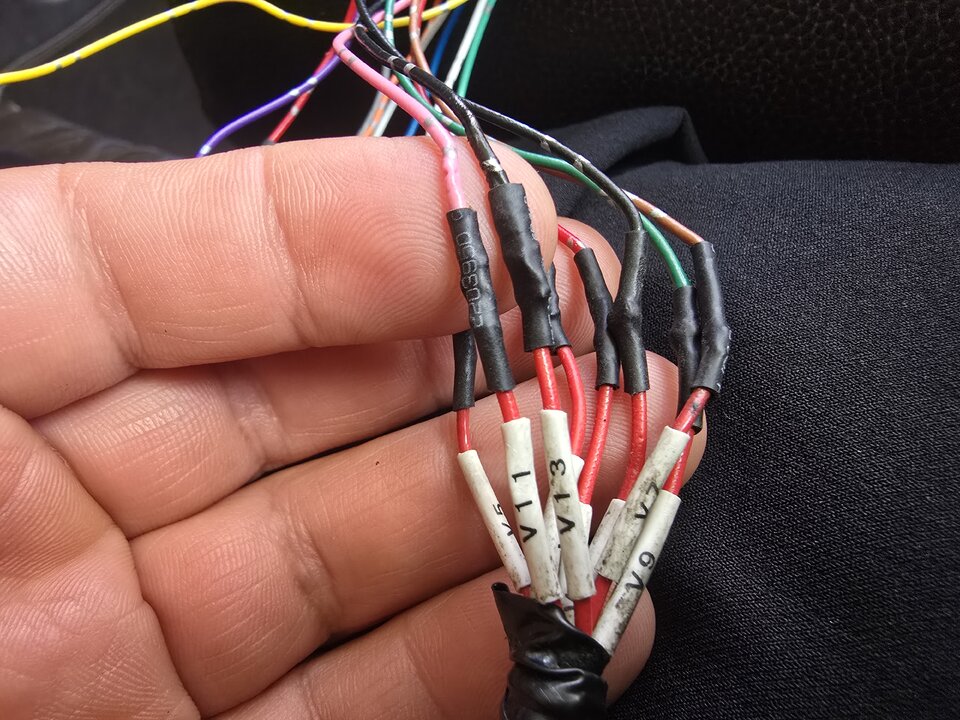

    Hello I upgraded my battery to the new cylindrical batteries but the wiring harness I got is for a gen 2 so I cut the end and connected my gen3 connector I soldered the connection with a one to one all seemed fine however the wiring loom connections are incorrect. I am missing or doubling block 10 through 14. Can someone be so kind as to tell me what the pinout is on the orange connector so I can pin the wiring loom correctly. Ie what color wire goes to what block. 20250626_172729.jpg 20250626_172800.jpg 20250626_173043.jpg 20250626_173129.jpg 20250626_144118.jpg 20250626_164423.jpg 20250626_164426.jpg 20250626_164443.jpg Screenshot_20250626_135222_Dr Prius.jpg


    Attached Files:

    #1 johnnychimpo, Jun 26, 2025 at 9:28 PM
  2. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    26,297
    17,227
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    [​IMG]

    Notice that some colors are repeated.


    Attached Files:

    • vb.png
      File size:
      2.1 KB
      Views:
      0
    #2 ChapmanF, Jun 26, 2025 at 10:17 PM
    Brian1954 likes this.
  3. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    12,001
    4,875
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    #3 PriusCamper, Jun 26, 2025 at 11:16 PM
  4. Brian1954

    Brian1954 Senior Member

    Joined:
    Jan 31, 2021
    1,737
    677
    0
    Location:
    South Central PA, USA
    Vehicle:
    2011 Prius
    Model:
    III
    That wire harness might not work on the OP's cylindrical hybrid battery. Half of the voltage sensing wires are on one side of the battery, and the other half of the voltage sensing wires are on the other side of the battery. It looks like the wire harness the OP is using is made specifically for the cylindrical battery. Take a look at the pictures that are posted.

    #4 Brian1954, Jun 26, 2025 at 11:27 PM
    PriusCamper likes this.
  5. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    12,001
    4,875
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    .

    #5 PriusCamper, Jun 26, 2025 at 11:36 PM
    Last edited: Jun 26, 2025 at 11:43 PM
  6. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    12,001
    4,875
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    .

    #6 PriusCamper, Jun 26, 2025 at 11:38 PM
  7. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    12,001
    4,875
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    Yeah it's confusing... OP was sent the an incompatible part for an antiquated battery design and rather than returning it for a refund if they don't get the right parts they're trying to rewire it with wires that won't even plug into a gen3 ECU. It makes no sense! They were sold the wrong voltage sensor harness and NewPriusBatteries needs to fix that!

    #7 PriusCamper, Jun 26, 2025 at 11:41 PM
