Help: Need Photos of Gen5 Prius 12volt

Discussion in 'Gen 5 Prius Main Forum' started by PriusCamper, Feb 22, 2024.

  1. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,899
    4,419
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    Greetings, there's been some posts on here about 12volt batteries failing in 2023-2024 Prius and its a big enough problem that Toyota is back-ordered on replacement 12 volts.

    Is anyone who owns a Gen5 in this forum able to take some photos and measurements of your 12volt?

    I work with someone who is fabricating 12volt Lithium batteries that can operate in super-cold temperatures, and this might be an ideal temporary fix for people who can't drive their Prius because Toyota screwed up yet again by redesigning something that didn't need to be redesigned.

    Uhcoustic and RandyPete like this.
  2. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
    Will take some picss tomorrow when the sun is out and there is good light and warmth outside.

    PriusCamper likes this.
  3. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
    Here’s the pics of 2024 TOY PP XSE battery:


    Attached Files:

    bisco likes this.
  4. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
    The last listed pic, name starts with BEC5.... includes two fuses for the two 12v+ wires terminated at the battery '+' lug. One is a 50A fuse, the other is a 150A fuse...just of interest to me.

  5. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,899
    4,419
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    Thanks... It looks smaller than earlier Prius 12volts. Are you able to confirm that? As in have you seen a 12v in that spot in a 2004-2009 Prius?

  6. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
    I have a Gen2 2009 prius and changed out the 12v battery in it years ago. Still runs just fine. It is located in the same relative space in the rear of the car as the Gen5. It is a AGM battery. I replaced it with a vehicle specific Optima AGM battery.

  7. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,899
    4,419
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    Sounds like you're saying that the Gen5 12v is no different than the Gen2 12v? Your photos make me think it's not as long, but that could just be the camera angle? Makes me wonder why dealerships are having problems with Gen5 12v and claim they are out of stock?

  8. Gokhan

    Gokhan Senior Member

    Joined:
    Oct 5, 2008
    4,298
    1,754
    0
    Location:
    Paramount CA
    Vehicle:
    2021 Prius Prime
    Model:
    Limited
    It is EN LN1/DIN H4/BCI 140R. It is available at Walmart. Just make sure that it comes with the two exhaust-tube holes and a plug for the unused exhaust-tube hole. Walmart EverStart Maxx BCI 140R is equipped with the exhaust-tube holes and a plug for the unused exhaust-tube hole, and I believe it is a newer model than their DIN H4 model. It is made in Korea.

  9. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
    No, I did not say that they are the same battery. the Gen 2 is an AGM battery, the Gen 5 is a flood lead acid battery (maybe calcium lead acid) there is a difference in performance and charging routine. I would not interchange them without more info about the Toy battery charging routines. They just live in the same space in the two vehicles. I posted a PDF with the dimensions of the GS Yuasa LN1 battery used in the 2017 Prius. Its in another thread.

    Downrange likes this.
  10. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,703
    48,947
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Interesting. I wonder how they keep them safe without agm

  11. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
    Here's a video of a 12v battery replacement project, starting near the pic of the top of the stock battery in a 2017 Gen4 battery that is located in the engine compartment. Note that it has the sane 345LN1-MF designation as the Gen5 PP battery locatedin the back hatch area of an 2024 PP XSE. Its CCA is marked 295, the PP Gen5 is marked 285 CCA. The Gen4 battery has removeable (6) plugs for topping off the lead acid livel, the gen 5 does not have these plugs. And note that the Gen4 battery fill plugs appear to have a small hole in the top of each plug . I would guess that these small holes allow H2 to exit the battery.

    #11 RandyPete, Feb 23, 2024
    Last edited: Feb 23, 2024
    Gokhan likes this.
  12. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    10,899
    4,419
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    Yeah, wasn't talking about chemistry because the research is for LTO chemistry and their will be a battery management circuit to handle all the differences.

    At this early stage what I mean by "same" is the actual size of the battery. Do you think your Gen2 and Gen5 12volts are roughly the same size?

  13. Gokhan

    Gokhan Senior Member

    Joined:
    Oct 5, 2008
    4,298
    1,754
    0
    Location:
    Paramount CA
    Vehicle:
    2021 Prius Prime
    Model:
    Limited
    Here is the Gen 4 Prius Prime battery in the Turquoise Jewel (my 2021 Prius Prime Limited):

    [​IMG]

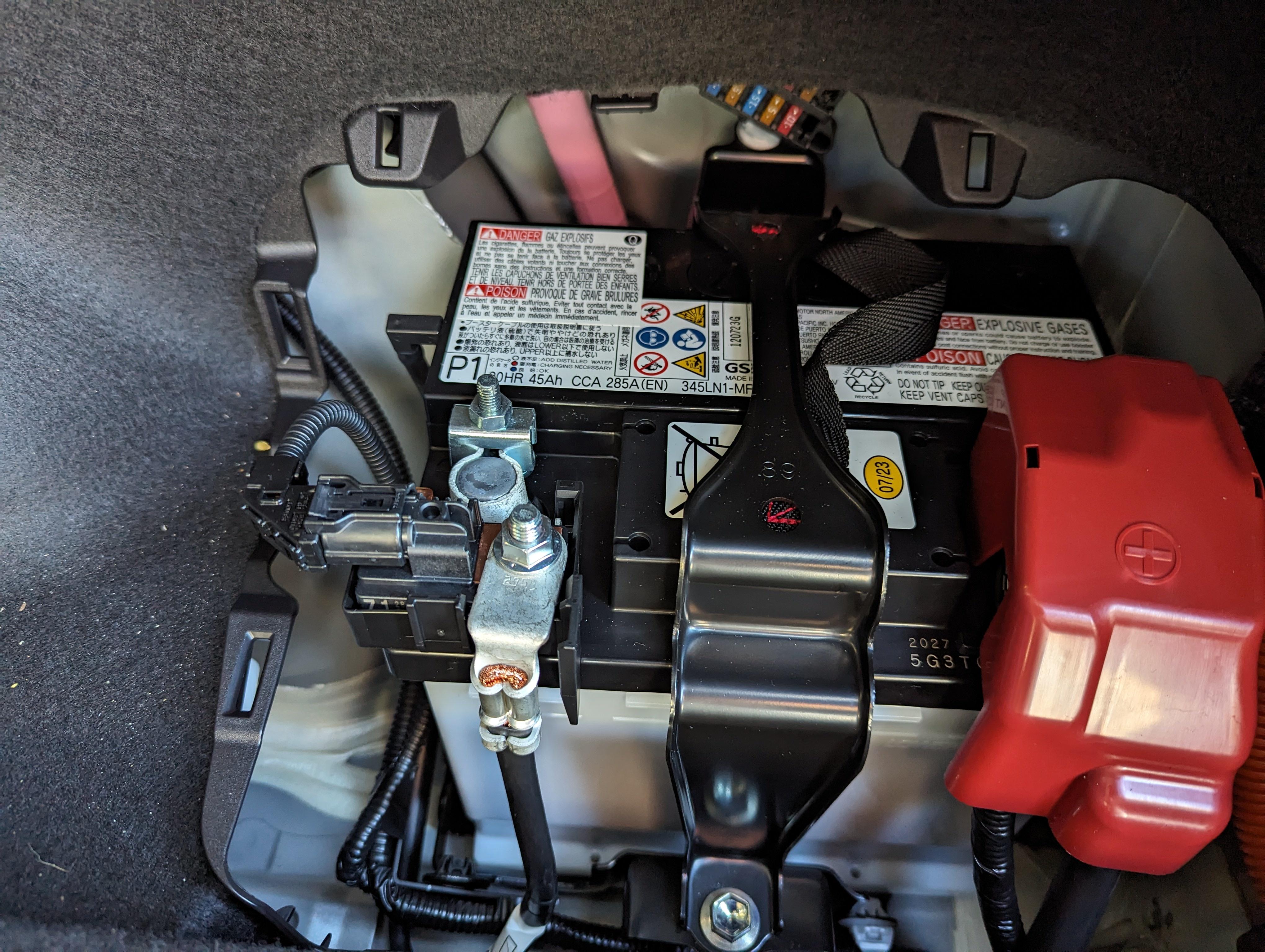

    Here is @Tooly's 2023 Prius Prime XSE battery. Strangely, it has the same model number 345LN1-MF as my older battery, despite mine having the vent holes in caps and therefore not being suitable for trunk installation:

    [​IMG]

    Here is the Walmart EverStart Maxx 140R with the proper vent holes and plug. You can see the red-plugged hole on the left and unplugged hole on the right; hence, it is suitable for trunk installation. The sulfuric acid must have leaked from another battery. The 95-minute reserve capacity is the equivalent of a 52-Ah capacity at @ 20-hour discharge, easily beating the factory-OEM Yuasa's 45-Ah capacity.

    [​IMG]
    [​IMG]
    [​IMG]

    Chances are that the Toyota TrueStart DIN H4 does not have the proper vent holes and plug for trunk installation, and that's why the dealer is having a hard time getting a suitable OEM replacement.

  14. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,676
    38,219
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    @PriusCamper needs someone to get out the tape measure and calipers:

    height (posts excluded)
    Width
    Depth
    Orientation/location/size of posts and vent hole

  15. Gokhan

    Gokhan Senior Member

    Joined:
    Oct 5, 2008
    4,298
    1,754
    0
    Location:
    Paramount CA
    Vehicle:
    2021 Prius Prime
    Model:
    Limited

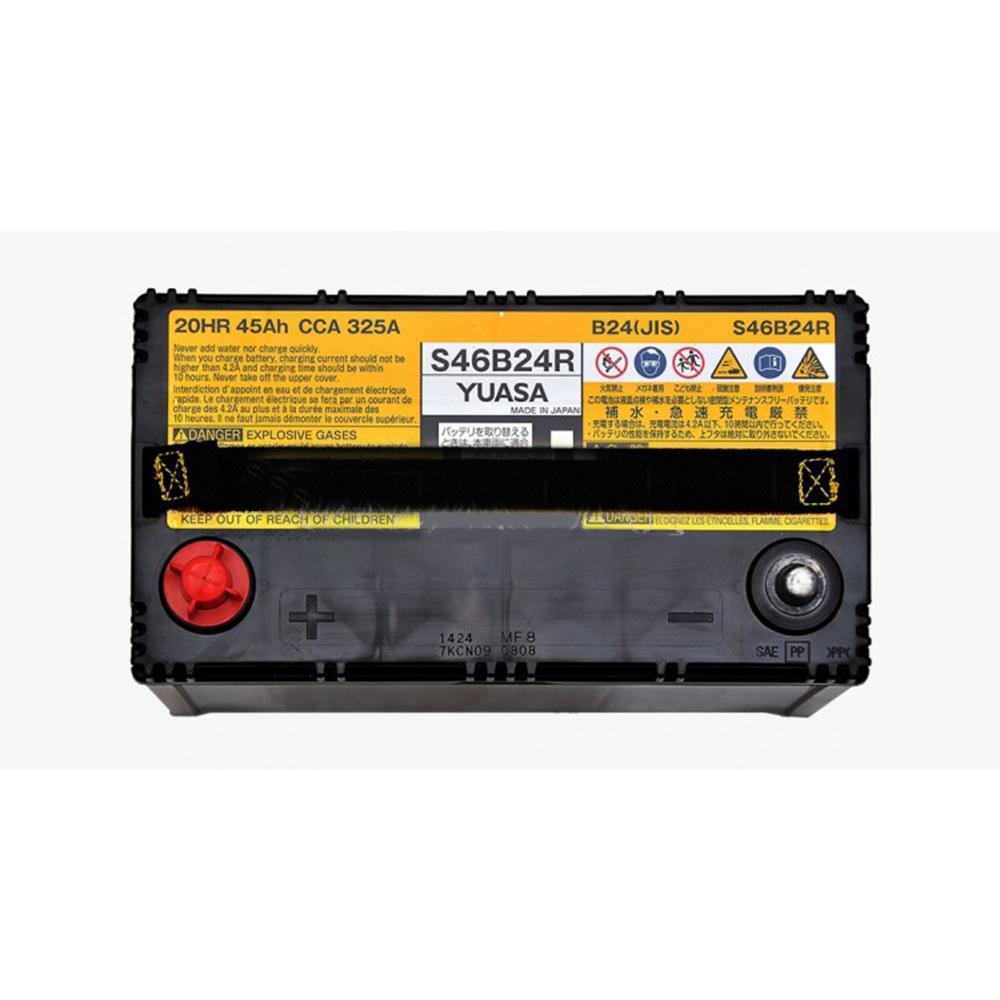

    No, not at all. Neither of the two Gen 2 battery options (the larger S46B24R and the smaller S34B20R) is of the group size EN LN1/DIN H4/BCI 140R as the Gen 4 and Gen 5 battery. Both Gen 2 battery options are much smaller in length and width and much taller in height than the Gen 4 and Gen 5 battery.

    It looks like Gen 3 also uses the larger Gen 2 12-V-battery option (S46B24R by GS Yuasa).

    Which 12V OEM battery is better for Prius 2nd Gen? | PriusChat

    [​IMG]
    [​IMG]

    #15 Gokhan, Feb 23, 2024
    Last edited: Feb 23, 2024
    PriusCamper likes this.
  16. KMO

    KMO Senior Member

    Joined:
    Apr 15, 2004
    1,408
    339
    0
    Location:
    Finland
    Vehicle:
    2023 Prius Prime
    Model:
    N/A
    RandyPete likes this.
  17. Gokhan

    Gokhan Senior Member

    Joined:
    Oct 5, 2008
    4,298
    1,754
    0
    Location:
    Paramount CA
    Vehicle:
    2021 Prius Prime
    Model:
    Limited
    There are at least four different battery-size standards: BCI (US), DIN (Germany), EN (EU), and JIS (Japan).

    BCI 140R, DIN H4, and EN LN1 are equivalent sizes.

    However, as I emphasized before, you need to make sure that there are side vent holes and a plug on the unused vent hole, as even the OEM GS Yuasa EN LN1 with the same model number did not have them until it was revised for Gen 5 Prius/Prius Prime trunk installation.

    RandyPete likes this.
  18. Mendel Leisk

    Mendel Leisk Senior Member

    Joined:
    Oct 17, 2010
    54,676
    38,219
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    The premise of this thread is to gather sufficient dims to build a compatible battery, not score one?

  19. RandyPete

    RandyPete Member

    Joined:
    Apr 1, 2021
    124
    28
    0
    Location:
    Santa Margarita, CA, USA
    Vehicle:
    2024 Prius Prime
    Model:
    XSE
  20. KMO

    KMO Senior Member

    Joined:
    Apr 15, 2004
    1,408
    339
    0
    Location:
    Finland
    Vehicle:
    2023 Prius Prime
    Model:
    N/A
    Not checked my own - I'm assuming it's the same as your pictures above. It's probably a custom part; I'm just using that chart for the size table. Maybe the "P1" you can see in the pictures is the model designation?
