Order of the brake pad shims?

Discussion in 'Gen 3 Prius Main Forum' started by anon_prius, May 8, 2025 at 6:47 PM.

Tags:
  1. anon_prius

    anon_prius Junior Member

    Joined:
    Aug 13, 2019
    31
    19
    0
    Location:
    Florida
    Vehicle:
    2011 Prius
    Model:
    Three
    Does anyone have a clear image or description of the order of the brake pad shims?

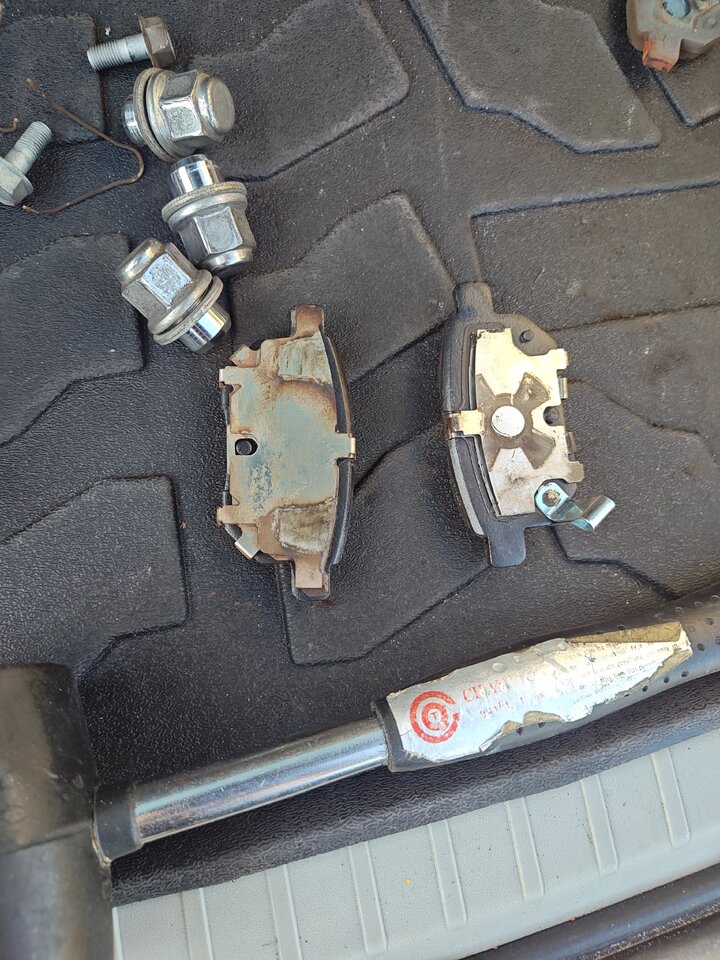

    The pads i replaced in the back had three shims each in a slightly different order while my front pads only had two shims, one of which fits poorly on the new pad, the manual I found isn't super clear, so now I'm supremely confused. (n)


    Attached Files:

    #1 anon_prius, May 8, 2025 at 6:47 PM
  2. Tombukt2

    Tombukt2 Senior Member

    Joined:
    Nov 29, 2020
    11,606
    2,051
    0
    Location:
    Durham NC
    Vehicle:
    2009 Prius
    Model:
    Base
    I don't know if I can find a picture of that quick usually the shims lay on top of each other and if you look at the little tabs that bend over the edge of the pads to hold the shims you can see how they look correct when they're put on the back of the pad two three it doesn't matter and I actually am not sure that if you mix them up it will cause you any strife look at the tabs that bend over the edge of the pads see when you drop the shims on as long as none of those tabs double up and lay on top of each other you should be okay do you see what I'm talking about?

    #2 Tombukt2, May 8, 2025 at 10:28 PM
