What's on the back of engine, above oil pan? (Wet!)

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by MrPete, Jul 19, 2025 at 1:07 PM.

Tags:
  1. NutzAboutBolts

    NutzAboutBolts Senior Member

    Joined:
    Mar 5, 2013
    1,637
    1,710
    0
    Location:
    Bay Area
    Vehicle:
    2012 Prius
    Model:
    Four
    @MrPete

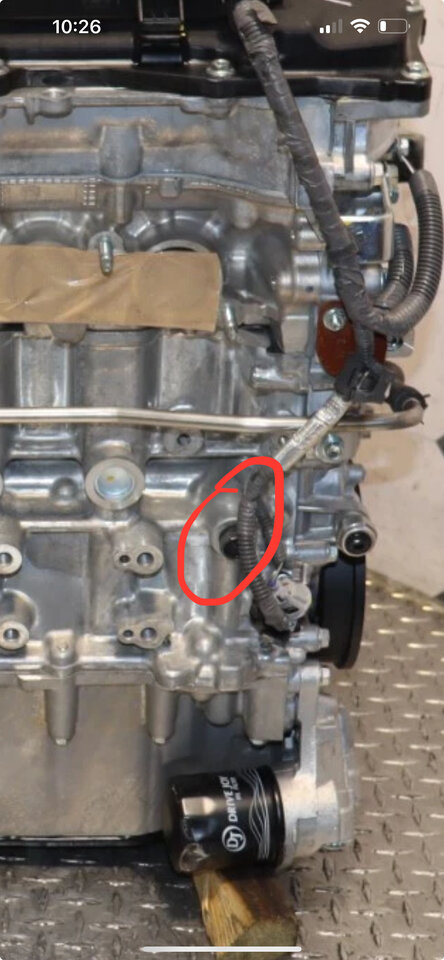

    Is your engine from a 4th gen engine? I see the black bolt in the back by the oil pressure sensor.


    Attached Files:

  2. MrPete

    MrPete Active Member

    Joined:
    Oct 26, 2011
    493
    190
    20
    Location:
    Colorado, USA
    Vehicle:
    2011 Prius
    Model:
    Two
    Good questions...

    I use Techstream for intense stuff, and keep an OBDlink LX installed while on the road, etc.

    OBDlink does seem somewhat smart, yet I don't get the impression it's doing anything all THAT fancy. IIRC its mostly a question of which lines it knows how to communicate with.

  3. MrPete

    MrPete Active Member

    Joined:
    Oct 26, 2011
    493
    190
    20
    Location:
    Colorado, USA
    Vehicle:
    2011 Prius
    Model:
    Two
    It's a 2015 (final Gen 3 year) from Hybrid Pitstop. The first year they fully solved the piston/ring issues.

    But according to the diagrams even for 2011, there are some extra bolts on the back side.

  4. Iron Man Prius

    Iron Man Prius New Member

    Joined:
    Jul 1, 2025
    29
    8
    0
    Location:
    Fullerton
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    Final year for a Gen 3 block was 2017 for Prius V and CT200h..and the piston rings were technically changed February 2014, for the 14.5 cars. ;)

  5. MrPete

    MrPete Active Member

    Joined:
    Oct 26, 2011
    493
    190
    20
    Location:
    Colorado, USA
    Vehicle:
    2011 Prius
    Model:
    Two
    Right. But to install a 2016 engine in a Gen3 (normal) Prius is more than a little tricky.Two years in, I am appreciating the expertise and care of Hybrid Pitstop in their engine replacement/upgrade program. :)

  6. Mendel Leisk

    Mendel Leisk MMX GEN III

    Joined:
    Oct 17, 2010
    59,045
    40,644
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    They solved it by finally acknowledging the low-friction piston rings they purposely spec'd, were an abysmal failure.

    Oh, and issued a TSB that says they'll replace pistons/rings on pre-revision Prius, IF it's burning more than a quart every 1100~1300 miles, AND has under 60k miles on the odometer.

    What a nice lot, always in our corner. :rolleyes:

  7. Iron Man Prius

    Iron Man Prius New Member

    Joined:
    Jul 1, 2025
    29
    8
    0
    Location:
    Fullerton
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    Not really if you put it together as plug and play for the Gen 3. JDM or Wrecking yard Gen 4, trying to adapt EGR and water lines..yes.

  8. rjparker

    rjparker Tu Humilde Sirviente

    Joined:
    Jun 6, 2008
    9,657
    5,945
    7
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Recently they started offering a rebuilt gen4 engine for retrofit into a gen3 car. They install a gen3 head between the gen4 block and cam assembly so that the gen3 egr and water lines fit.


    MrPete likes this.
  9. NutzAboutBolts

    NutzAboutBolts Senior Member

    Joined:
    Mar 5, 2013
    1,637
    1,710
    0
    Location:
    Bay Area
    Vehicle:
    2012 Prius
    Model:
    Four
    that’s pretty smart. Less modification on the coolant hoses and such. I wonder if the camshafts housing parts different from the gen4. If not, I bet reusing the gen3 head and egr is easier to plug and play.

  10. RightOnTime

    RightOnTime Senior Member

    Joined:
    Sep 21, 2012
    772
    1,642
    183
    Location:
    Kidnapped in OC, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Yes, we started doing this about 5 years ago with Great success from our Test subjects that we trusted for honest feedback. The game changer was modifying the Felpro Headgasket to make it work effortlessly with the Gen 4 waterpump

    NutzAboutBolts likes this.
  11. rjparker

    rjparker Tu Humilde Sirviente

    Joined:
    Jun 6, 2008
    9,657
    5,945
    7
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    On my v it was the timing chain cover sealant. At first it just collected on the engine and the under cover. I changed the oil pressure switch and had a new tensioner and tensioner gasket installed with no results.

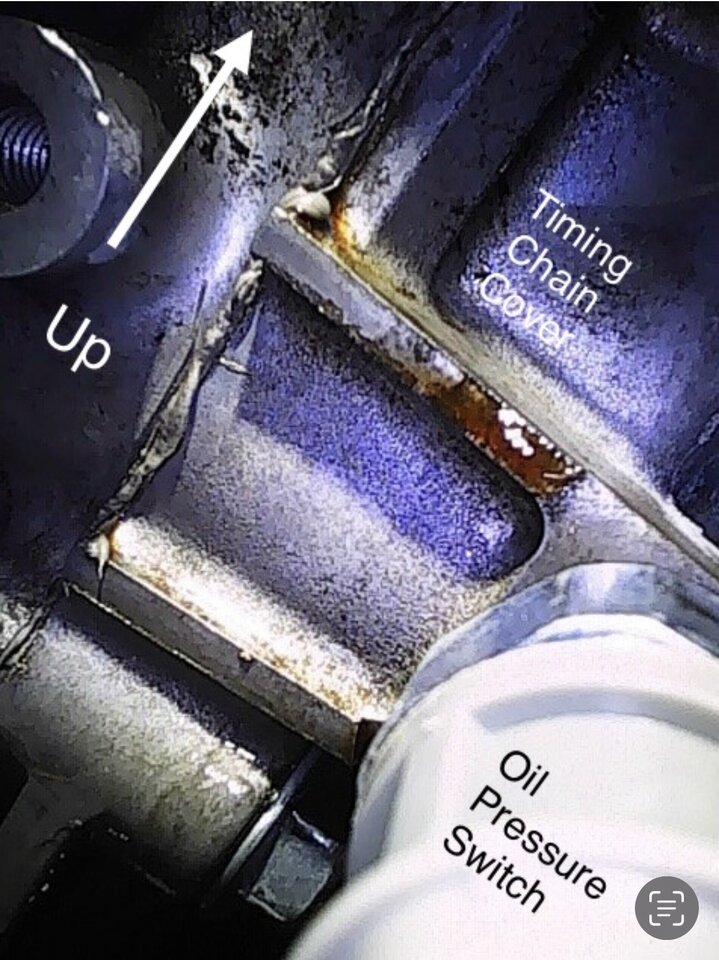

    Eventually it was cleaned up enough to capture the leak location:


    After driving a while it was all over the oil pressure switch, that general area and some blew around that side of the engine.

    johnHRP and MrPete like this.
  12. johnHRP

    johnHRP Active Member

    Joined:
    Aug 6, 2014
    609
    174
    0
    Location:
    KA, DE
    Vehicle:
    2015 Prius
    Model:
    Excel
    yeah.... Classic older style pre-2.5L engines timing cover. They almost always leak at the point where the head meet the cradle and timing cover. 3 surfaces rendezvous where oil allowed to passo_O.
    Mine leaking like that too since the standard waranty expired at 60k miles.

  13. Iron Man Prius

    Iron Man Prius New Member

    Joined:
    Jul 1, 2025
    29
    8
    0
    Location:
    Fullerton
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    Exactly what I mentioned, I think Pete was thinking FULL Gen 4 right out of the donor car, yes that's more tricky and moving parts.

  14. Iron Man Prius

    Iron Man Prius New Member

    Joined:
    Jul 1, 2025
    29
    8
    0
    Location:
    Fullerton
    Vehicle:
    2016 Prius
    Model:
    Three Touring
    You wouldn't be able to have a plastic Gen 4 valve cover on a Gen 3 cam cradle. ;)

    johnHRP likes this.
